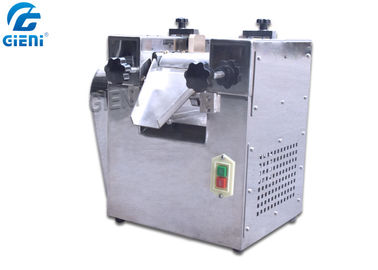

Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable

Подробная информация о продукте:

Место происхождения: Китай
Фирменное наименование: Gieni
Номер модели: S65

Оплата и доставка Условия:

Количество мин заказа: 1SET
Цена: Negotiable
Упаковывая детали: Случай Фильм+Полывоод
Время доставки: 60 дней
Условия оплаты: L / C, T / T
Поставка способности: 1сет в 60 дней
Онлайн консультант
Подробное описание продукта
Диаметр ролика: 15см цвет: серебристый
Низкооборотный: 26р/мин Средн-скорость: 70r/min
Быстро-скорость: 145р/мин Размер машины: 140*400*450мм
Вес: 80KG тип упаковки: ФАНЕРА СЛУЧАЙ

Laboratory Type Lipstick Three Roll Mill Rotate Speed Adjustable


Application for Three Roller Mill


The three roll mill is mainly used to mill various kinds of paste-like materials (except those which can cause corrosion of rolls) such as paint, oil ink, ink, oily pigment, coating, foodstuff, cosmetics etc. Recently it has expanded its application range to raw materials of electric cable, manmade leather, plastic, soap and pencil core etc. therefore the machine has become the main equipment for those factories to mill materials.

Working Principle for Three Roller Mill

When operating, you can adjust gap between the fast roll and the middle roll and that between the slow roll and the middle roll respectively. Start the machine and feed the materials to be milled between two baffles which are between the middle roll and the slow roll. Materials are squeezed by surfaces of the middle and slow rolls and are then driven by the middle roll to the fast roll for further milling. Meanwhile materials are scraped off by the discharging scraper which is closely contacted with the surface of the fast roll, and flow through the discharging bucket with fenders to the collect drum, therefore a milling circulation is formed.

Technical Parameters for Pigment Three Roller Mill


Roller Diametercm65152640.6

Roller speed

Power kw0.757.51115
Out Dimensioncm41*40*45120×100×110256×173.5×151256×203.5×152.5



 Laboratory Type Cosmetic Filling Machine Lipstick Three Roll Mill Rotate Speed Adjustable
Packing and Shipping
◆ Will make sure the machine's package with stretch film wrapping first, and firmly
   sea worthy wooden case;
◆ We can arrange shipping by air or by sea according to require;
◆ We accept to ship by LCL or FCL co-loading.


Our Service


Supply the following after-sale service:

◆ Free training your technican in our workshop;
◆ 1 year wear parts are provided with machine;
◆Able to come on site for commissioning, visa cost, double journey airfare, food
   and accommodation
◆ Local transporation on site for coming engineer will be charge by buyer;
◆ Salary in charge for coming engineer is USD150/day;
◆ Providing Guidanc via email and telephone for whole life of the machine.
Company Information
Shanghai Gieni Industry Co.,Ltd was founded in 2011. We are a cosmetic
machinery manufacturer which professional in researching and developing,
producing cosmetic machinery. We just focus on daily chemical and color cosmetic
fields, and providing the complete set of packaging solutions for your esteemed
After years of effort our products have sold to USA, Mexico, Colombia, Swizerland,
Bulgaria, Russia, Ukraine, Turkey, Indonisier, UAE, Pakistan, Iran and other fifty
countries and refect the machine to be more excellent performance during
production in user’s site.
Since founding of our company, we adhere to the idea of keeping improving,
dedication and enterprising and launch the products with international first-class
standard. We strive to create a individuality brand with bright style:GIENI.
